Model No. LD-808-500G

Features

808nm+/- 3nm 500mW laser diode

In 9mm package with build-in monitoring PD

Low operating current

High efficiency

High operating temperature 50 ^oC

Applications

Pumps for solid state lasers

Medical use

Absolute maximum ratings

Parameter

Symbol

Condition

Rating

Unit

Light output power

P_O

500

Reverse voltage (LD)

V_RL

Reverse voltage (PD)

V_RD

Forward current (PD)

I_FD

Case temperature

T_C

-10~+50

^oC

Storage temperature

T_S

-40~+85

^oC

Electrical and optical characteristics (T_c=25^oC)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Conditions

Peak wavelength

805

808

811

P_o =500mW

Threshold current

I_th

150

200

Operating current

I_op

600

700

P_o =500mW

Operating voltage

V_op

1.8

2.0

P_o =500mW

Differential efficiency

0.8

1.0

mW/mA

P_o =3-5mW

Monitor current

I_m

0.15

0.8

P_o =500mW, V_RD=0V

Parallel divergence angle

q_//

deg

P_o =500mW

Perpendicular divergence angle

q_^

deg

Emission point accuracy

DxDyDz

±80

Precautions

Do not operate the device above the maximum rating condition, even momentarily. It may cause unexpected permanent damage to the device.

Semiconductor laser device is very sensitive to electrostatic discharge. High voltage spike current may change the characteristics of the device, or malfunction at any time during its service period. Therefore, proper measures for preventing electrostatic discharge are strongly recommended.

Effective heat sink can help the device operates under a more relax condition; as a result, a more stable characteristics and better reliability can be achieved. So it is recommended that always apply proper heat sink before the device is operating.

Do not look into the laser beam directly by bare eyes. The laser beam may cause severe damage to human eyes.

The above specifications are subject to change without notice.

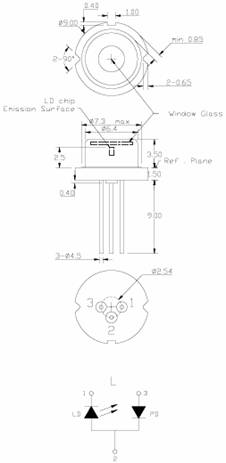

Mechanical dimensions & Pin assignment (unit: mm)

Note: The above specifications are subject to change without notice.
